About this vehicle
Year:
2023
Condition:
New
Make:
PILOTCAR
Power Type:
Lithium (105Ah)
Stock #:
3389
Serial Number:
NRY226A16PB003389
Model:
PC-2 2+2
Location:
Liberty Hill TX
Color:
Red
Description

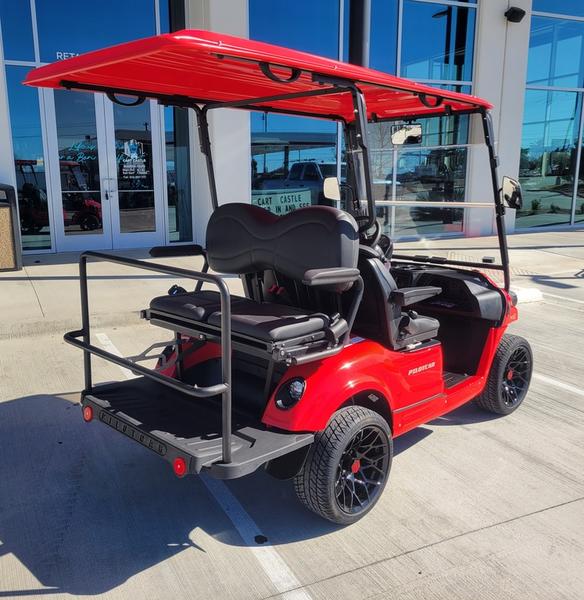

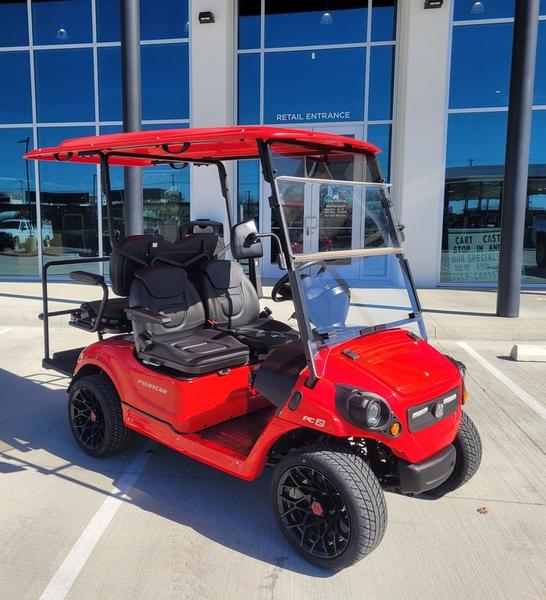

2023 Pilotcar PC-2 2+2
Combine versatile seating with serious performance in the PC-2 2+2. Available in Red, it’s driven by a Curtis-controlled 4 kW (peak 9.6 kW) or 6 kW (peak 12.46 kW) motor paired with a 105 Ah lithium battery, delivering up to 25 mph top speed and a remarkable 55.5 mi range on a single charge.
Key Features Include:
- Motor & Controller: Curtis 350–450 A controller with rated 4 kW/6 kW power, peaking at up to 16.95 hp for confident acceleration.
- 105 Ah Lithium Battery & Onboard Charger: OvarTech 3.3 kW charger; reaches 80% in ~4 hrs and a full charge in ~6 hrs.
- Range & Speed: Max forward speed 15–25 mph, reverse up to 5 mph; lithium pack offers up to 55.5 mi range.
- Chassis & Body: Automotive-style steel frame with E-coat corrosion protection and ABS thermoplastic body panels.
- Suspension: Fully independent McPherson front struts and semi-independent rear swing arm with coil-over shocks.
- Brakes: Regenerative plus self-adjusting mechanical rear drum brakes and foot-actuated multi-lock parking brake.

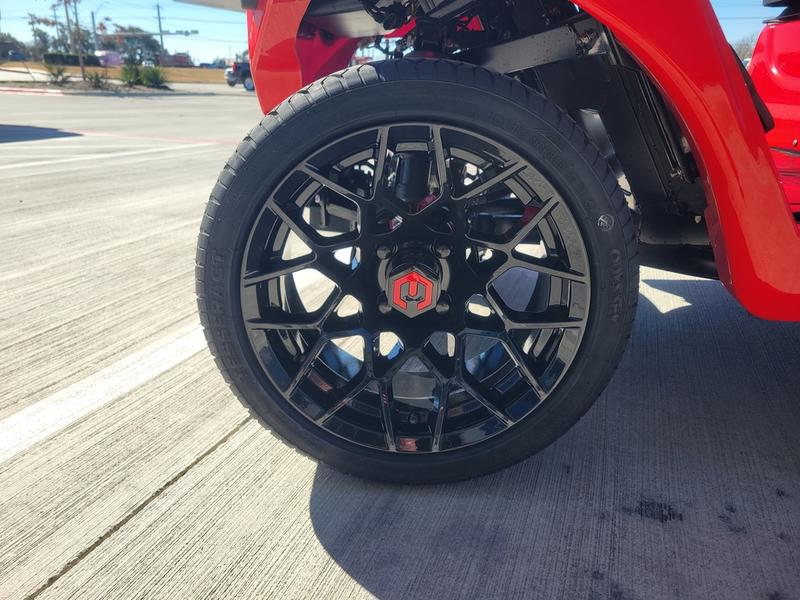

- Wheels & Tires: Choice of 18×8.5-8 or 20.5×8-10 (6 ply) tires for stability and traction.
- Dimensions: 94.2″ L × 47.8″ W × 77.3″ H (with suntop); 9.8 ft turning radius for tight-space maneuvering.
- Capacity: Seats 2+2, carries up to 881 lb cargo and tows 1,102 lb; ideal for utility or leisure use.
- Warranty: 2 year full coverage plus 5 year limited on motor and controller.
Whether for campus shuttles, resort patrols, or weekend cruises, the 2023 Pilotcar PC-2 2+2 in Red delivers a balanced mix of utility, comfort, and style.
